Product Details:
|
| Power Consumption: | 390W | Electrical Requirement: | 220V±10%,50Hz±1 |
|---|---|---|---|
| Flow Rate (L/M): | 1~5 | Oxygen Concentration(%): | 93± 3% |
| Outlet Pressure(kPa): | 45±10% | Sound Level(dBA): | ≤ 36 |
| Temperature Range: | 5~40°c | Humidity Range(%): | 15~93% |
| Equipment Class And Type: | Class II Type B | Net Weight(kg): | 21.5 |
| High Light: | medical ventilator machine,emergency transport ventilator |
||

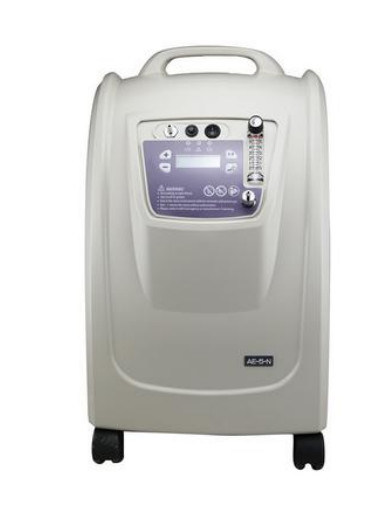

ISO13485 CE PSA SPO2 nebulizer Atomization function oxygen concentrator
Product Description
1. PSA Technology
2. Timing Fuction for working hour's control (10 MIN - 5 HOURS). More convinient.
3. With Re-settable Circuit Breaker and Flame Breaker, Maintenance Alert. More safe.
4. Five-stage filters(HEPA filter and bacteria filter) keep away most of impurity, bacteria and PM2.5; More healthy.
5. Self diagnosis system : Malfunction information display on LCD. More intelligent.
6. Big displacement compressor ensures 30% longer life span, suit for 24 hours continue running. More professional.
7. Noise Reduction technology. More Quiet.
8. Longer Manufacturer Warranty for 36 months. More economic.
Warranty Period
A: 36 months for the whole unit
(except of consumable parts and accesories)
Pre-sales Service
1. We will communicate with customers to learn their demands and requirements.
2. Necessary Sample, Files, Guide and Training are available.
3. OEM service is available.
In-sales Service
1. We provide service of recording the important steps of machines' production and test for customers.
2. We provide service of freight cost comparison, assist customers choosing the most suitable and economic transporation methods.
After-sale Service
1. Help customers settle problems in time, reply within 24 hours and provide solution within one week.
2. Well learn customers' further requirements and improve the machines according customers special demand.
3. We will provide free spare parts under warranty time.
4. Free turn over parts are available since customers' second order when their accumulated order quantity over 100 sets.
5. We would like to provide face to face trainning. Welcome to our factory, or our booth (We take part in 5 to 10 wordwide exhibitions every year.)
Specification
| Model | HF-3 | HF-5 | HF-8 | HF-10 |
| Rated Flow | 3L/MIN | 5L/MIN | 8L/MIN | 10L/MIN |
| Concentration | 93%±3% | |||
| Power Supply | 220HZ 50HZ, 110V 60HZ, Customized | |||
| Power | 390W | 390W | 450W | 610W |
| Sound Level | 36dB | 36dB | 50dB | 50dB |
| Outlet Pressure | 45KPa±10% | |||
| N.W. | 21KG | 21.5KG | 24KG | 24KG |
| G.W. | 23KG | 23.5KG | 26KG | 26KG |
| Size | 372*340*612MM | |||
| Carton Size | 445*400*680MM | |||
| Warranty | 3 years | |||
| Standard Functions | Power Failure Alarm, Over-Heat Alarm, Maintenance Prompt | |||
| Optional Functions |
Low Purity Alarm, High/Low Pressure Alarm, Nebulizer, SPO2 Sensor, Remote Control |
|||
Product Detail
