Product Details:
|
| Name: | DR X-Ray Machine | Application: | X-Ray Room |
|---|---|---|---|
| Power Supply: | 220V/110V | MOQ: | 1 SETS |
| Function: | Medical Diagnosis | ||
| High Light: | 20KW X Ray Radiological Equipment,Lightweight X Ray Radiological Equipment,110V X Ray Radiological Equipment |
||
Product Specification
1. Generator output: 5.0 kW
2. kV range: 40 kV - 120 kV in 1kv steps
3. mA range: 25~103 mA
4. Exposure time: 4 films per min, less than 20 ms per film
5. X-ray tube: Stationary anode tube with a focal spot of 1.5*1.5 mm
6. Collimator: Bright field light beam collimator with 120 W halogen lamp and auto shut-off facility.
7. Power requirements: Single phase 220 V +/- 10% Voltage tolerance; 50 Hz power supply

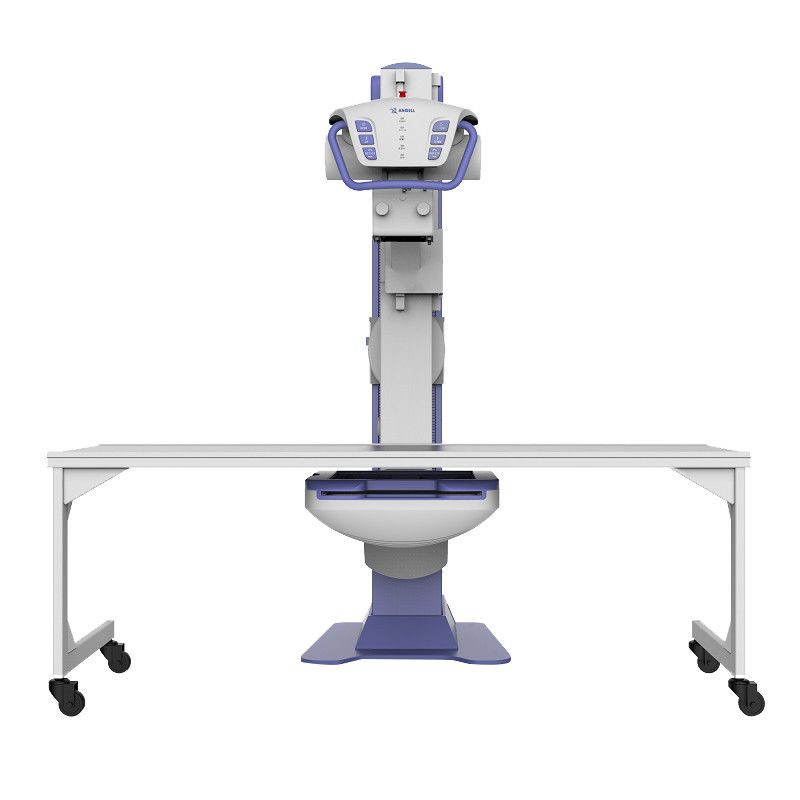

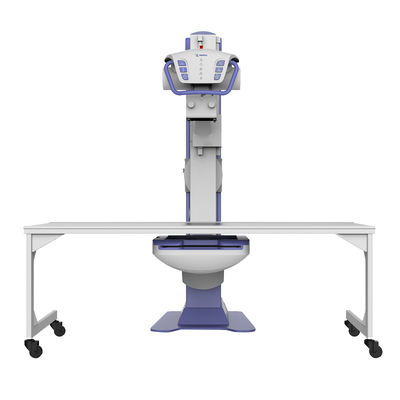

8. Mobile stand: Light-weight, low height mobile and easily maneuverable stand.
9. The mobile radiographic unit also include a handheld control and a microwave wireless remote control for the 20-meter microwave remote Without the restriction of Barriers and directional, different from the infrared remote control . Grids reduce the fog line filters and raise the degree of scattering contrast.
10. The unit is provided with a line (power) cord of acceptable durability, quality, length and is secured with adequate strain reliefs
The unit include, power plugs that are sufficient for the maximum voltage and current of the unit.
11. The maximum distance from the ground: ≥2000mm, and minimum distance from the ground: ≤500mm. Rotating around the horizontal axis 180 °, rotation around the vertical: ± 90 °, the collimator can rotate 180 °.
