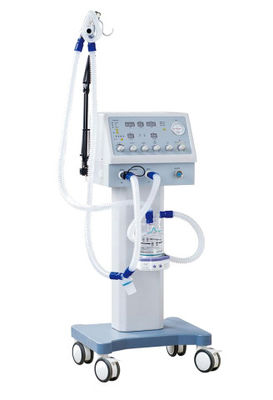

ICU Portable Medical Devices Ventilator Machine For Ambulances With CE Certification

ICU Portable Medical Devices Ventilator Machine For Ambulances With CE Certification
ICU Portable Medical Devices Ventilator Machine For Ambulances With CE Certification

Large Image :  ICU Portable Medical Devices Ventilator Machine For Ambulances With CE Certification

Product Details:
Place of Origin: Shanghai,China
Brand Name: HFMED
Certification: CE,ISO
Model Number: HF-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: 5~7 days after payment received
Delivery Time: 5~7 days after payment received
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets/month

ICU Portable Medical Devices Ventilator Machine For Ambulances With CE Certification

Description
Breathing Mode: A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH,MANUAL Tidal Volume: 50~1200ml
I/E Ratio: 1:1.5~1:3.0 Respiration Frequency: 6~60 Bpm
IMV Frequency: 1~12 Times /Min Lung Compliance: ≤30 ML / KPa
Maximum Minute Ventilation: ≥18L / Min Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0.1 ~ 1.0 KPa Ptr: -4.0kPa~1.0kPa
High Light:

air breathing apparatus

,

emergency transport ventilator

ICU portable medical ventilator machine for ambulances with CE certification



Features

1. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy

2. Display: High visibility, wide angle LED alphanumeric data display, equipped with tactile analog parameter controls

3. Equipped with high precession infrared turbine pressure and flow sensors

4. Power failure support functions: Automatically converts to standby mode during AC power outages

5. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor

6. Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure oxygen failure and other alarms.

7. 9 Level adjustable humidifier



Main technical specifications:
Breathing Mode: A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH,MANUAL
Tidal Volume: 50~1200ml
I/E Ratio: 1:1.5~1:3.0
Respiration Frequency : 6~60 bpm;
IMV Frequency: 1~12 times /Min
Lung compliance: ≤30 mL / kPa
Maximum Minute ventilation: ≥18L / min
Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0.1 ~ 1.0 kPa
Ptr: -4.0kPa~1.0kPa
Max .Safe Pressure: ≤6.0 kPa

Ventilation monitoring:
Tidal volume,Minute ventilation,Frequency,Airway Pressure,I/E, and so on.


Product Size

Length(mm) 660
Width(mm) 520
Height(mm) 1110
CBM(mm3) 0.38
N/W(kg) 33
G/W(kg) 40
Remark Main Unit CTN/Li-lon
CTNS 1



Product Detail

ICU Portable Medical Devices Ventilator Machine For Ambulances With CE Certification 0

FAQ

1. What kind of payments do you support?

T/T, L/C, Western Union, PayPal & Cash are accepted.


2. Do you charge for the samples?

According to our company policy, we just charge the samples based on EXW price. And we will return the samples fee during the mass order.


3. Can you produce according to customers' design?
Yes, we are professional supplyer; OEM and ODM are both welcomed.
1) Silk print logo on the product;
2) Customized product housing;
3) Customized Color box;
4) Any your Idea on product we can help you to design and put it into production.

We'll offer you the quotation as soon as possible once receive your inquiry, so don't hesitate to contact us. We can produce the product under your brand name; also the size can be changed as your requirement.
