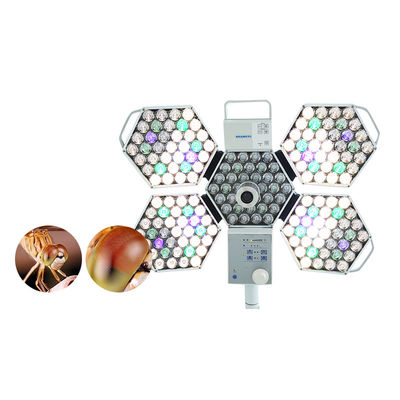

Wall Mounted Shadowless Medical LED Light With 860mm Lamp Head Diameter

Wall Mounted Shadowless Medical LED Light With 860mm Lamp Head Diameter

    • Wall Mounted Shadowless Medical LED Light With 860mm Lamp Head Diameter
    • Wall Mounted Shadowless Medical LED Light With 860mm Lamp Head Diameter
  • Wall Mounted Shadowless Medical LED Light With 860mm Lamp Head Diameter

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: HFMED
    Certification: CE,FDA,ISO
    Model Number: SY02-LED5+5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: carton or wooden case
    Delivery Time: within 5 workdays after the receipt of payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 sets/month
    Contact Now
    Detailed Product Description
    Type: Led Operation Light Color Rendering Index: Ra>95
    Color Temperature (5 Steps Adjustable): 4500±200K Depth Of Illumination (mm): 1000
    LED Life: >50,000 Hours Control Panel: LCD
    Size Of Light Field: 200~350mm Lamp Head Diameter: 860mm/860mm
    Rated Power Of Bulb: 3.2V/1W Lowest Height Of Installation: 3100mm

    SY02-LED5+5 Wall mounted shadowless operating lamp led lens for surgical light



    Discription:



    Uniform,homogeneous lighting in surface and deep cavity procedures thanks to SY02-LED´s innovative shadow control.
    Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team.
    Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
    Environmentally proactive: low power consumptionn and durable LEDs minimize the impact on our precious resources.



    Conditions of use

    2.1 Normal working conditions

    Temperature:10℃~30; Relative humidity:≤70%; Atmospheric pressure range:860hPa~1060hPa;

    This equipment can not be worked in flammable and explosive gas environment.

    The type of device security: I type equipment;

    Working system: continuous operation; Liquid injection protection level: IPXO.

    2.2 Power parameters

    Power supply voltage:AC220(±10%)V; Frequency:50Hz; Input power:300VA;

    PLM-700 main lamp power:152W; PLM-500 main lamp power:88W.

    2.3 suitable mounting height:3200~3300 mm

    Low-storey may bring inconvenience to users. please refer to the product diagram. in special

    circumstances, you should contact with the manufacturer when purchasing.
