|Type:||Led Operation Light||Color Rendering Index:||Ra>95|
|Color Temperature (5 Steps Adjustable):||4500±200K||Depth Of Illumination (mm):||1000|
|LED Life:||>50,000 Hours||Control Panel:||LCD|
|Size Of Light Field:||200～350mm||Lamp Head Diameter:||860mm/860mm|
|Rated Power Of Bulb:||3.2V/1W||Lowest Height Of Installation:||3100mm|
medical lighting equipment,

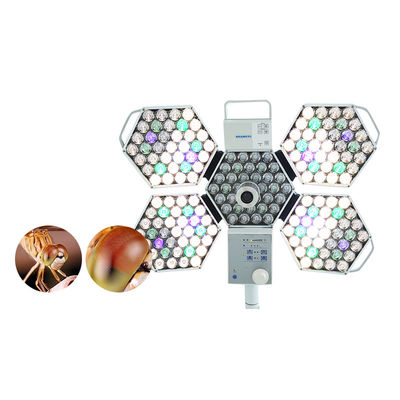

SY02-LED5+5 Wall mounted shadowless operating lamp led lens for surgical light
Uniform,homogeneous lighting in surface and deep cavity procedures thanks to SY02-LED´s innovative shadow control.
Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team.
Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
Environmentally proactive: low power consumptionn and durable LEDs minimize the impact on our precious resources.
Conditions of use
2.1 Normal working conditions
Temperature:10℃~30℃; Relative humidity:≤70%; Atmospheric pressure range:860hPa~1060hPa;
This equipment can not be worked in flammable and explosive gas environment.
The type of device security: I type equipment;
Working system: continuous operation; Liquid injection protection level: IPXO.
2.2 Power parameters
Power supply voltage:AC220(±10%)V; Frequency:50Hz; Input power:300VA;
PLM-700 main lamp power:152W; PLM-500 main lamp power:88W.
2.3 suitable mounting height:3200~3300 mm
Low-storey may bring inconvenience to users. please refer to the product diagram. in special
circumstances, you should contact with the manufacturer when purchasing.
