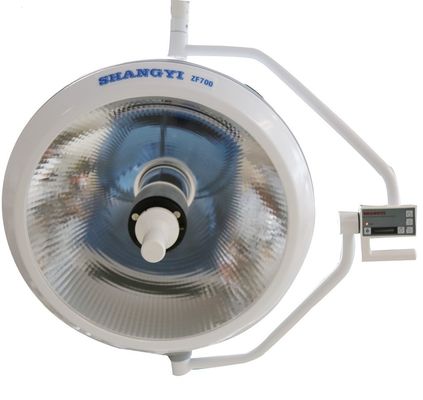

Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light

Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light
Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light

Large Image :  Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light

Product Details:
Place of Origin: Shanghai,China
Brand Name: HFMED
Certification: ISO,CE,SGS,FDA
Model Number: ZF700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: In two wooden case
Delivery Time: 5~7 days after the receipt of payment
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 300 sets/month

Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light

Description
Illuminance: ≥150,000Lux Color Temperature: 4500±300K
Illuminance Depth: 1000mm Lamp Head Diameter: 700mm
CRI: 94Ra Bulb Quantity: 1pc
High Light:

medical exam lamps

,

led operating light

over 150,000lux illuminance Ceiling-Mounted Single Headed Ceiling Shadowless Light with one halogen bulb



The ZF500S Shadowless Operating Lamp (Mobile), a whole reflection-styled Medical Equipment, is applicable to illumination of medical institutions in operation. It integrates the advantages of Medical Equipments produced today, and furthermore, adopts CAD/CAM technique to design the whole inflection optical system, the wholly-closed and streamline uni-lamp-body frame and the imported balancing system. In the design, the situation where it is used in a operation clean room is considered: the streamline shape and theφ500 diameter of lamp body have less resistance to the flow of purified air so as to greatly reduce the phenomena that air flows in disorder. This model of Medical Equipment can be used for illumination in a common small-scale operation as well as for assistant illumination in a large-scale operation.



Detailed specification?

Technical parameter Details
Illuminance ≥150,000Lux
Color temperature 4500±300K
Color reduction index 94Ra
Illuminance depth 1000mm
Total irradiance 426W/m²
Size of light field 160~280mm
Lamp head diameter 700mm
Rated power of bulb 24V/150W
Service life of illuminant 1,000h
Power supply voltage AC110-240v,50/60Hz
Brightness adjustment Automatic 8-stage continuous light adjustment
Total power consumption 80W
Total LED bulb quantity 1pc
Lowest installation height 2900mm
Warranty 1 year



How about the package?

Packing Wooden case
Packing size Single head:91*92*37cm
Other:108*43*60cm
Weight Single head:GW:19KG NW:12KG
Other:GW:46KG NW:35KG



Main functions

  • Microcomputer digital control, with eight-section brightness selection, and having memory function and voltage negative feedback control. When the city voltage is within 220VAC±10%, the Medical Equipment can work as usual.
  • With the automatic switch function of spare bulb. When the primary bulb is burnt out, the accessorial bulb will automatically light up at once. On the handle panel, there are failure indicators of primary and accessorial bulb, which will remind people of timely replacing after an operation.
  • A soft startup device is installed to effectively prolong the usage life of a bulb. If an imported long-life halogen bulb is adopted, the normal work can be maintained for 600-1000 hours.

Product detail

Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light 0

Ceiling Mounted Operating Room Lights / Single Headed Shadowless Led Light 1
