Surgical Bipolar Bipolar Diathermy Machine , Electrocautery Unit For Various Surgry

Surgical Bipolar Bipolar Diathermy Machine , Electrocautery Unit For Various Surgry
Surgical Bipolar Bipolar Diathermy Machine , Electrocautery Unit For Various Surgry

Large Image :  Surgical Bipolar Bipolar Diathermy Machine , Electrocautery Unit For Various Surgry

Product Details:
Place of Origin: Shanghai,China
Brand Name: HFMED
Certification: ISO,CE
Model Number: HF-CM350C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Delivery Time: 5~7 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets/month

Surgical Bipolar Bipolar Diathermy Machine , Electrocautery Unit For Various Surgry

Description
Output Mode: Six Kinds Cut: 1~400W
Blend 1: 1~200W Blend 2: 1~120W
Electro Coag 1: 1~150W Electro Coag 2: 1~180W
Bipolar Coag: 1~70W Power: 220V±22V,50Hz±1
High Light:

electrosurgical generator

,

surgical cautery machine

CE ISO Marked High Frequency Bipolar surgical equipment Electrosurgical Cautery Unit for various surgry



HF-CM350C Electrosurgical Unit ,with isolated output design, it provides proper power output for cutting and coagulating tissue in both Mono-polar and Bipolar surgeries. It can be widely used in many surgical operations. Adopting a microcomputer control technology and modular design, it features simple design, convenient and easy maintenance, powerful functions, stable performance and easy operation, and it is equipped with versatile jacks for accessories.



Feature



1. The wide scope permanent power, the surgery locates precisely
2. The return route pole plate monitor system, guarantees the patient safety
3. 350W high efficiency output also continuously adjustable, can meet each kind of surgeon’s surgery needs.

(General surgery, thoracic surgery)
4. Six kinds of working model, the surgery is quickly easy. (pure cutting, blend 1, blend 2, coagulation, spay,

bipolar coagulation)
5. When turn on the Generator, it can check the system by itself
6. When the neutral electrode detect that the impendence is between 20Ω and 140Ω, the alarm will be activated

and the ESU will be shut down

7. There are three kinds of sound to show the 4 different working modes as the following: Error Warning,

Cutting & Coagulation, Bipolar
8. Many kinds of appendix disposition, best performance-to-price ratio
9. Line Voltage: 220V±22V,50Hz±1



Technical Parameters



1. Ambient temp. range: 5ºC~40 ºC

2. Relative Humidity Range: ≤80

3. Atmospheric Pressure Range: 86.0~106.0kpa

4. Power: 220V±22V,50Hz±1

5. Operating Freq.: 330~460kHz

6. Rated Power: 1100VA±10%

7. Type: CF



Transportation and Storage



Ambient Temp. Range

40 ºC ~ 55 ºC

Relative Humidity

≤95%

Atmospheric Pressure

500hpa ~ 1060hpa



Application



Applicable for general surgery, thoracic surgery, orthopedics, obstetrics and gynecology, urologic surgery, cerebral surgery, microsurgery, ENT surgery and etc.

  • Cut: Pure cut, can make easy operation for any organic, tissue, texture, the effect is refine cut, no escharosis on the surface.

  • Blend 1: The effect is cut with tiny coagulation;

  • Blend 2: Can use this function together with Endoscope, the effect is offering a better coagulation during cut;

  • Electro Coag 1: Called strength electrocoagulation, or called surface coagulation, for a deep coagulation layer for organic.

  • Electro Coag2: Called soft electrocoagulation, or called Point coagulation, faster coagulation, larger effect area,Can use this function together with Endoscope;

  • Bipolar Coag: Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can prevent organic’s adhesion.

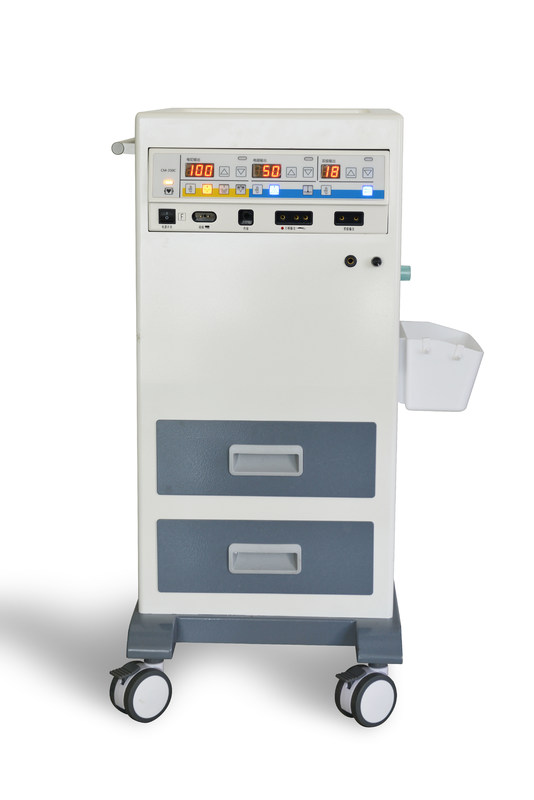

Product Show

Surgical Bipolar Bipolar Diathermy Machine , Electrocautery Unit For Various Surgry 0
