Product Details:
|
| Standard: | German | Kind: | VAC Outlet |
|---|---|---|---|
| Function: | Vacuum Negative Pressure | Use: | For Pendant, Bed Head Unit |
| Optional Gas Kinds: | O2,Vacuum,CO2,Agss | Optional Gas Standard: | Ohmeda,Chemetron,Puritan-Bennett,Diss American Stn |
| High Light: | medical gas wall outlet,wall oxygen outlet |
||

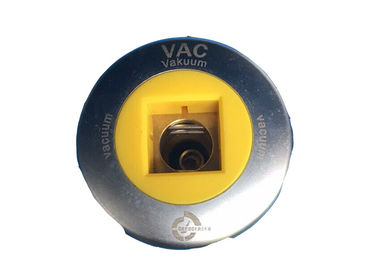

Hospital Medical Gas Unit VAC Medical Gas Outlets with Vacuum Negative for Surgery
Medical gas outlet Structure and Function:
Terminal consists of two parts: one is back-end base (various gases are different), two is front-end interface (the interface of different colors and shapes, with anti mistakenly inserted function), inside the back-end base with a non-return of maintenance valve. Maintenance valve can be screwed into threaded portion of the base. Then can cut off the gas supply after screwing terminal, enabling maintenance functions with gas.
Medical gas outlet details:
| Name | Medical VAC Outlets | Optional |
| Material | Brass,Copper,Stainless steel,ABS | available |
| Medical gas | O2,Vacuum,AIR,N2,N2O,CO2,AGSS | available |
| Advantage | Competitive price under scale economy | available |
| Quality | High qualtiy.all parts are produced by us with strict controlling | available |
| Distinguish | Different pin index designed and used for different gases | available |
| Apperance | Beautiful apperance with high quality | available |
| Gas standards | Ohmeda,Chemetron,Puritan-Bennett,DISS American stnadards;French,DIN,British standard | available |
| Certification | CE,ISO | available |
| Pipeline | O.D.10mm K Type with copper pipline | available |
| Test | 100% air tightness test accroding to NFPA99:2005 standard | available |
| Parts | Include service valve,Convenience for maintenance |
available |
Different Medical Gas Outlets Application
Used to obtain various gases (including negative) from the central gas supply system piping in the medical equipment
Can be divided into:
German
British
French
Japanese
American
And other type.
While supporting plug selected in line with the relevant standards
Structure and Function
Terminal consists of two parts: one is back-end base (various gases are different), two is front-end interface (the interface of different colors and shapes, with anti mistakenly inserted function), inside the back-end base with a non-return of maintenance valve. Maintenance valve can be screwed into threaded portion of the base. Then can cut off the gas supply after screwing terminal, enabling maintenance functions with gas
Technical Parameters
Type of construction: Galvanized pearl all-metal structure, with a stop-off-pass three-position, by pressing the button to unlock all metal; single-hand operation; maintenance valve can be manually turned off.
Installation:Wall concealed installation; surface mount; bed head unit installation; medical ceing pendant and medical bridge pendant installation
|
|
Gas Outlets Different types of outlets ofr customers too choose from German/British/American/Australian/Australian Standard |
|
|
SPECIFICATIONS
| Type | Nitrous Oxide Medical Gas Outlets |
| Standard | German |
| material | metal shell type |
| Kind | N2O outlet |
| Optional Gas Standard | Ohmeda,Chemetron,Puritan-Bennett,Diss American Stn |
| Use | for Pendant, Bed Head Unit |
| Optional Gas Kinds | O2,Vacuum,CO2,Agss |
Delivery&Warranty
| Warranty | 1 year |
| Term | 100% T/T |
| Delivery | 7 days or more more time depend on more qtn order |
|
FAQ
Q1. Can I have a sample order for pendant?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for medical pendant order?A: Low MOQ, 1 pc for sample checking is available Q4. How do you ship the goods and how long does it take to arrive?A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for hospital pendant?A: Firstly let us know your requirements or application. Q6. Is it OK to print my logo on ICU pendant?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer 2 years warranty to our products. |
