Product Details:
|
| Illuminance: | ≥140,000Lux, ≥140,000Lux | Colour Temperature:: | 4500±200K |
|---|---|---|---|
| Color Reduction Index(Ra): | 96,96 | Illuminance Depth: | 1150mm,1150mm |
| Total Irradiance: | 510W/m²,510W/m² | Size Of Light Field: | 200～350mm,200～350mm |
| Service Life Of Illuminant: | 50,000 Hours | Power Supply Voltage: | AC110-240v,50/60Hz |
| Lowest Height Of Installation: | 2900mm | Total Power Consumption: | 140 W （70 W+70 W） |
| Total LED Bulb Quantity: | 368 Pcs Osram Brand LED | OEM/ODM: | Acceptable |
| High Light: | surgical operating light,led surgical lamp |
||

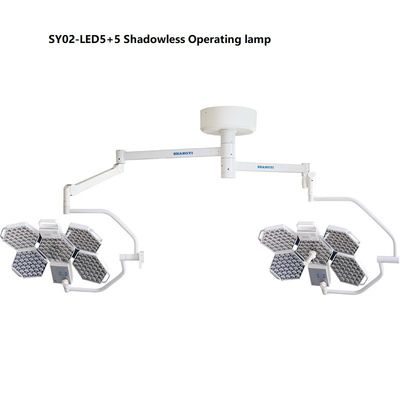

160000 Lux LED Surgical Lights / Medical Lighting Equipment 4500K CE And FDA Approval
Descriptions
Model SY02-LED5+5
combined with 2 pcs 360 degree rotary arms , for one couple of LED5 lamp heads ,fixed 4500K color temp.
Bulb and Lens Design
|
Dragonflies have one of the most elaborate eyes of any insect,capable of pinpointing the motion of a small prey insect several meters away,even his while the dragonfly is traveling fast.
LED light source life of up to 50,000 |
|
| Precise Uniform,homogeneous lighting in surface and deep cavity procedures thanks to SY02-LED5+5 Fixed color temperature ’s innovative shadow control. |
| Simple Our ergonomic,sterile operating concept allows for the simple and flexible control of all functions by the surgical team. |
| Durable Almost unlimited SY02-LED5+5 's LED life expectancy delivers trmendous product reliability and investment protection. |
| Efficient Environmentally proactive:low power consumption and durable LEDs minimize the impact on our precious resources. |
Main Technical Data
| Name | SY02-LED5+5 FIXED color temperature |
| Material | Aluminum Alloy |
| Illuminance(Lux) | LED5>=140000,LED5>=140000 |
| Colour temperature(k) | 4500+-200K |
| Colour rendering index(Ra) | 96/96 |
| Illuminance depth(mm) | 1150/1150 |
| Total irradiance (W/m2) | 510 |
| Size of light field (mm) | 200-350 |
| Rated power of bulb(V/W) | 3.2V/1W |
| Illuminant Life | >50000 |
| Power supply voltage | AC110V-240V(50HZ-60HZ) |
| Total power consumption(W) | 70 |
| Total LED bulb quantity(pcs) | 368 |
| Lowest height of installation(mm) | 2900mm |
| Warranty | 2 years |
| Delivery time | 5 working days after payment |
|
FAQ
Q1. Can I have a sample order for LED Surgical Lamp?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than |
