|Illuminance:||LED5 ≥140,000Lux, LED 3 ≥120,000Lux||Colour Temperature::||4500±200K|
|Color Reduction Index(Ra):||96,96||Illuminance Depth:||LED5: 1150mm,LED 3 :1020mm|
|Total Irradiance:||LED5 :510W/m²,LED 3 380W/m²||Size Of Light Field:||200～350mm,200～350mm|
|Service Life Of Illuminant:||50,000 Hours||Power Supply Voltage:||AC110-240v,50/60Hz|
|Lowest Height Of Installation:||2900mm||Total Power Consumption:||130 W （60 W+70 W）|
|Total LED Bulb Quantity:||295 Pcs Osram Brand LED||OEM/ODM:||Acceptable|
surgical operating light,
led surgical lamp
Long Life Time 50000 Hours LED Surgical Lights , OT Operating Room Lamp With Double Rotaty Arm
FDA,CE,ISO Approval SY02-LED Series ,hot sold in High End market.

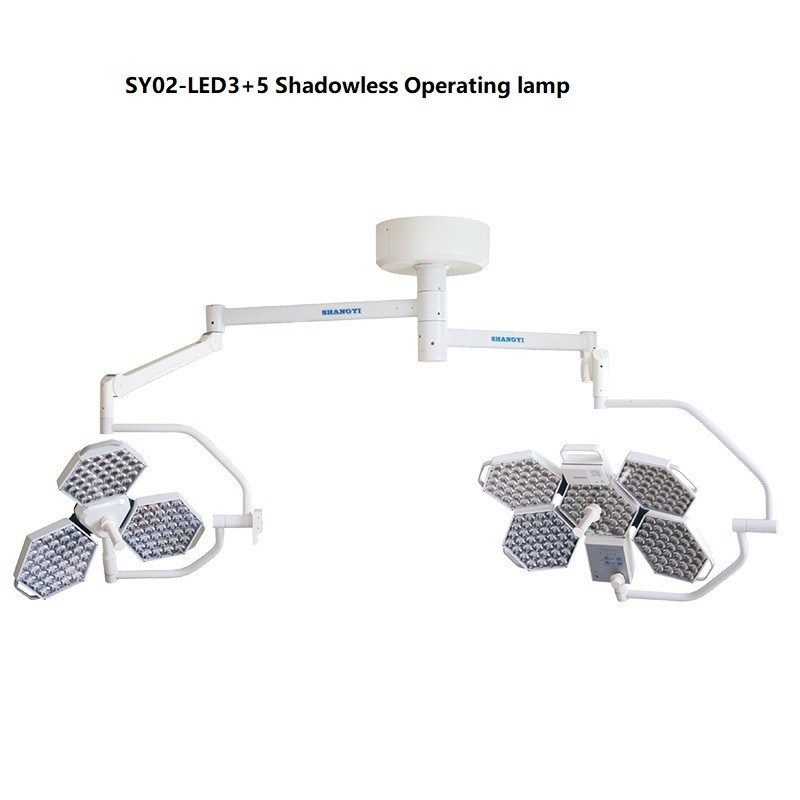

Model SY02-LED3+5 Master satellite Combined Type (fixed color temp )
with 2 pcs 360 degree rotary arms system,the arm has 6 joints system for smooth and stable moving . Could stay and supspend anywhere you need
The master satellite Combined Type head ,including one LED3 lamp head and one LED5 lamp head could meet general surgery and complicated operation.
LED 5 lamp head has 184 pcs LED bulbs, harnessed the far-reaching potential of the multi-lens matrix to virtually eliminate shadows. Its overlapping fields of light and multiple patterns - selectable based on the surgical situation -minimize shadows and redirect the full selected intensity to the surgical site.
The result is up to 20% more light in deep cavity situations.
LED 3 lamp head has 111 pcs LED bulbs
SY02-LED Serice Shadowless operating lamp and these operating instructions areintended for medical and technical staff in the hospital and doctor’s office who are familiar with the work involved from their medical training and hold a licence to that effect
Main Technical Data
|Name||SY02-LED3+5 Fixed color temperature|
|Colour rendering index(Ra)||96/96|
|Total irradiance (W/m2)||510/380|
|Size of light field (mm)||200-350|
|Rated power of bulb(V/W)||3.2V/1W|
|Power supply voltage||AC110V-240V(50HZ-60HZ)|
|Total power consumption(W)||70+60|
|Total LED bulb quantity(pcs)||295|
|Lowest height of installation(mm)||2900mm|
|Delivery time||5 working days after payment
Q1. Can I have a sample order for LED Surgical Lamp?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1 Set for sample checking is available
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our Led Surgical Lamp products.
Contact Person: Ms. Huihua Shao
