Product Details:
|
| Illuminance: | ≥140,000Lux | Color Temperature: | 3500±200K/4000±200K/4500±200K/5000±200K |
|---|---|---|---|
| Illuminance Depth: | 1050mm | CRI: | 96Ra |
| Total Power Consumption: | 70W | Total LED Bulb Quantity: | 184pcs |
| High Light: | surgical operating light,led surgical lamp |
||

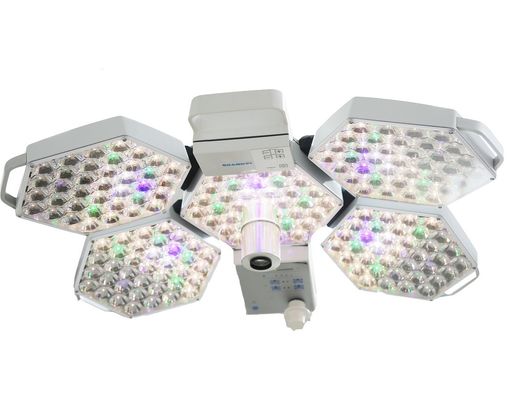

70watt adjustable color temperature LED shadowless operating lamp with 184pcs led bulbs
SY02-LED Serice Shadowless Operation Lamp is applicable to lighting for operations in the operation rooms of medical facilities.
There shall be no electromagnetic or other interferences with the equipment and other devices.
The lamp is featured with the fully closed streamline single/double lamp block structure, meeting the requirements of disinfection and high level laminar flow in the operation room; the LED based integrated reflective optic system, providing deeper illumination; and the color temperature compensation technology, enhancing the color rendering properties, to make it more suitable for cerebrosurgery and other large complicated operations.
How about the detailed specification?
| Technical parameter | Details |
| Illuminance | ≥140,000Lux |
| Color temperature | 3500±200K/4000±200K/4500±200K/5000±200K |
| Color reduction index | 96Ra |
| Illuminance depth | 1150mm |
| Total irradiance | 510W/m² |
| Size of light field | 200~350mm |
| Lamp head diameter | 700mm |
| Rated power of bulb | 3.2V/1W |
| Service life of illuminant | 50,000h |
| Power supply voltage | AC110-240v,50/60Hz |
| Total power consumption | 70W |
| Total LED bulb quantity | 184pcs |
| Lowest height of installation | 2900mm |
| Warranty | 2 years |
How about the package?
| Packing | Wooden case |
| Packing size | Double Head:113*109*45cm Other:110*72*42cm |
| Weight | Double Head: GW:36KG NW:27KG Other: GW:49KG NW:38KG |
OPERATION OF THE SY02-LED5 SINGLE LUMINAIRE
The LED Lighting System uses an innovative lamp, the LED (light-emitting diode).
Average service life
LEDs are superior to conventional halogen or discharge lamps in that they have a very long service life.
Whereas conventional lamps generally have to be changed after 600 to 5,000 hours, LEDs have an average service life of approx.30,000 hours.
Extremely fail-safe
By employing a large number of LEDs the light head is extremely fail-safe.
Color temperature adjustment
Color temperature: 4,500 K
Switching on the light head
1. Switch on main switch in OR.
If the light head does not light up:
Press the non-sterile ON / OFF button 3
① adjustment of the luminous field
② Sterile hand grip (for sterile positioning and adjustment of the luminous field)
③ ON / OFF button
④ adjust the colour temperature
⑤ arrow buttons:for setting the illuminance
