Product Details:
|
| Illuminance: | 1300mm | Color Temperature: | 4300±200K |
|---|---|---|---|
| Size Of Light Field: | 160~280mm | Rated Power Of Bulb: | 37V/50W |
| Total Power Consumption: | 70W | ||
| Highlight: | surgical operating light,led surgical lamp |
||

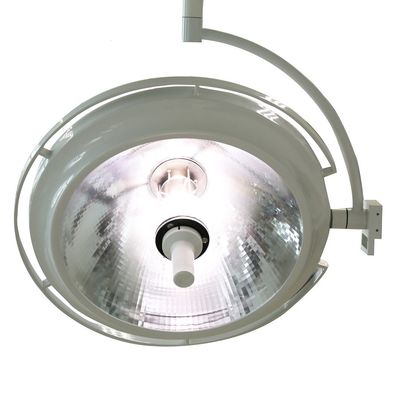

over 140000lux illuminance 72cm lamp head diameter led shadowless operating lamp with single bulb
ZF720 LED Serice Shadowless Operation Lamp is applicable to lighting for operations in the operation rooms of medical facilities.
There shall be no electromagnetic or other interferences with the equipment and other devices.
The lamp is featured with the fully closed streamline single/double lamp block structure, meeting the requirements of disinfection and high level laminar flow in the operation room; the LED based integrated reflective optic system, providing deeper illumination; and the color temperature compensation technology, enhancing the color rendering properties, to make it more suitable for cerebrosurgery and other large complicated operations.
Normal operation conditions:
Voltage: ~220V±10% Frequency: 50Hz±1Hz
Operating temperature: 10℃～30℃ Relative humidity: not more than 80%
Standard installation height: 3m Voltage of lamp holder: 24V
Safety level: Level I Lightning protection: Type B
Operation mode: continuous operation
Installation: permanent installation, not used in the environment with inflammable anaesthetic gases
How about the detailed specification?
| Technical parameter | Details |
| Illuminance | ≥140,000Lux |
| Color temperature | 4300±200K |
| Color reduction index | 93Ra |
| Illuminance depth | 1300mm |
| Total irradiance | 426W/m² |
| Size of light field | 160~280mm |
| Lamp head diameter | 720/720mm |
| Rated power of bulb | 37V/50W |
| Service life of illuminant | 50,000h |
| Power supply voltage | AC110-240v,50/60Hz |
| Total power consumption | 70W |
| Total LED bulb quantity | 1pc |
| Lowest height of installation | 2900mm |
| Warranty | 2 years |
How about the package?
| Packing | Wooden case |
| Packing size | Single Head:91*92*37cm Other:122*43*72cm |
| Weight | Single Head: GW:19KG NW:12KG Other: GW:65KG NW:50KG |
Description of operation
Maneuverability
The extension arm ③, spring arm ④, horizontal bar ⑤ are for positioning the light head horizontally and vertically.
through max. 420° on the ZF720 LED light head,
The light head ⑥rotates through approx. 420°.
Spring arm height stop
Upward movement of the spring arm ④ can be limited to 0° (horizontal axis) to, for instance, prevent it colliding with the ceiling.
Spring arm function
To make it easy to position the light head ⑥, the spring arm ④contains a spring.
Adjusting tension
This spring counterbalances the weight of the light head. If the spring arm drops, the spring must be adjusted (see 7.2 Adjusting the tension).
Brake function
The extension arm ③, spring arm ④, horizontal bar ⑤have brakes to keep them wherever they are posi tioned.
Adjusting brake force
If the light head does not stay in position of its own accord the brake force must be adjusted (see 7.3 Adjusting the brake force).
