Product Details:
|
| Illuminance: | LED 3 ≥120,000Lux | Colour Temperature:: | 4500±200K |
|---|---|---|---|
| Color Reduction Index(Ra): | 96,96 | Illuminance Depth: | LED 3 :1020mm |
| Total Irradiance: | LED 3 380W/m² | Size Of Light Field: | 200～350mm |
| Service Life Of Illuminant: | 50,000 Hours | Power Supply Voltage: | AC110-240v,50/60Hz |
| Lowest Height Of Installation: | 2900mm | Total Power Consumption: | 120 W （60 W+60 W） |
| Total LED Bulb Quantity: | 222 Pcs Osram Brand LED | OEM/ODM: | Acceptable ,plz Contact With Us |
| Highlight: | surgical operating light,led surgical lamp |
||

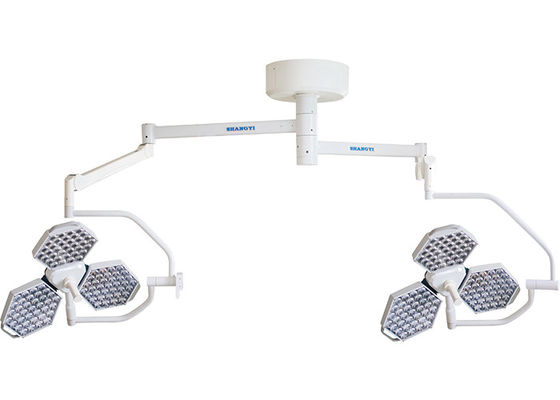

Twims Surgical Lamp Head Surgery Lights for sale with 6 joints Arm Group
DESCRIPTION OF EQUIPMENT
SY02-LED Serice Shadowless Operation Lamp. To fully and effectively use the lamp, and master the correct method of operation and use and maintenance, please read carefully the Instructions before installation for use.
SY02-LED Serice Shadowless Operation Lamp is applicable to lighting for operations in the operation rooms of medical facilities.
Base
The surgical lamp is a dedicated equipment suspended in the ceiling of the operation room, so the safety of the base arrangement is of high importance. The product requires a base capable for bearing 500 kg static load, with sufficient rigidity, to meet the actual requirements for the load and rigidity in applications.
The height of the standard operation room is 2900mm.
Components of the lighting system
The LED Lighting System consists of the ceiling plate ,the ceil ing tube the extension arm the spring arm and light head 7/10 with cardanic suspension(horizontal bar 5 and gim bal joint 6.
Ceiling heights
The ceiling tube evens out different ceiling heights, so that thelight head is positioned at an accessible operating height.
Power supply
The electrical connections for the LED Lighting System are underthe ceiling plate . For this reason, the ceiling plate must onlybe removed by trained service staff.
Maneuverability
For optimal maneuverability, each of the light heads7/10 are mounted on a horizontal bar and gimbal joint
Main Technical Data
|
Name |
SY02-LED3+3 Fixed color temperature |
|
Material |
Aluminum Alloy |
|
Illuminance(Lux) |
LED3>=120000 |
|
Colour temperature(k) |
4500±200K |
|
Colour rendering index(Ra) |
96/96 |
|
Illuminance depth(mm) |
1030/1030 |
|
Total irradiance (W/m2) |
380/380 |
|
Size of light field (mm) |
200-350 |
|
Rated power of bulb(V/W) |
3.2V/1W |
|
Illuminant Life |
>50000 |
|
Power supply voltage |
AC110V-240V(50HZ-60HZ) |
|
Total power consumption(W) |
60+60 |
|
Total LED bulb quantity(pcs) |
222 |
|
Lowest height of installation(mm) |
2900mm |
|
Warranty |
2 years |
|
Delivery time |
5 working days after payment |
|
FAQ
Q1. Can I have a sample order for LED Surgical Lamp?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than Q3. Do you have any MOQ limit for led light order?A: Low MOQ, 1 Set for sample checking is available Q4. How to proceed an order for led surgical light?A: Firstly let us know your requirements or application. Q5. Is it OK to print my logo on led light product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q6: Do you offer guarantee for the products?A: Yes, we offer 2 years warranty to our Led Surgical Lamp products.
|
