Product Details:
|
Illuminance: | ≥140,000Lux, ≥140,000Lux | Colour Temperature:: | 4500±200K |
---|---|---|---|
Color Reduction Index(Ra): | 96,96 | Illuminance Depth: | 1150mm,1150mm |
Total Irradiance: | 510W/m²,510W/m² | Size Of Light Field: | 200~350mm,200~350mm |
Service Life Of Illuminant: | 50,000 Hours | Power Supply Voltage: | AC110-240v,50/60Hz |
Lowest Height Of Installation: | 2900mm | Total Power Consumption: | 140 W (70 W+70 W) |
Total LED Bulb Quantity: | 368 Pcs Osram Brand LED | OEM/ODM: | Acceptable ,plz Contact With Us |
High Light: | surgical operating light,led surgical lamp |
FDA Approval Operating Theatre Lamp,Medical Equipment Operating Theatre Lights Suppliers
Descriptions

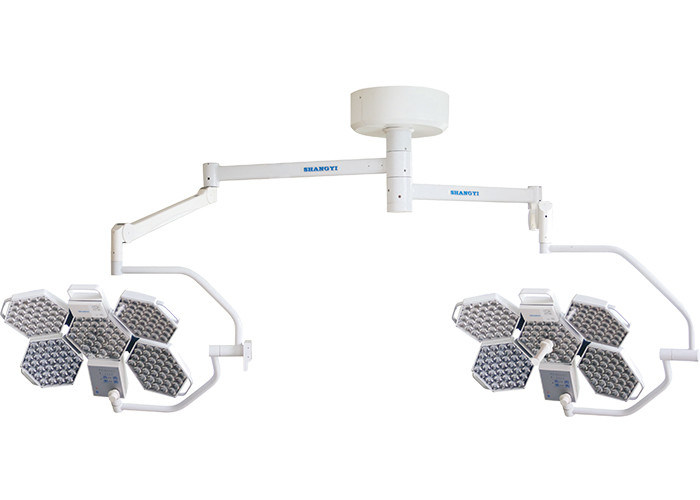

Model SY02-LED5+5
combined with 2 pcs 360 degree rotary arms , for one couple of LED5 lamp heads ,fixed 4500K color temp.
Bulb and Lens Design
Dragonflies have one of the most elaborate eyes of any insect,capable of pinpointing the motion of a small prey insect several meters away,even his while the dragonfly is traveling fast.
LED light source life of up to 50,000 |
|
Precise Uniform,homogeneous lighting in surface and deep cavity procedures thanks to SY02-LED5+5 Fixed color temperature ’s innovative shadow control. |
Simple Our ergonomic,sterile operating concept allows for the simple and flexible control of all functions by the surgical team. |
Durable Almost unlimited SY02-LED5+5 's LED life expectancy delivers trmendous product reliability and investment protection. |
Efficient Environmentally proactive:low power consumption and durable LEDs minimize the impact on our precious resources. |
Main Technical Data
Name | SY02-LED5+5 FIXED color temperature |
Material | Aluminum Alloy |
Illuminance(Lux) | LED5>=140000,LED5>=140000 |
Colour temperature(k) | 4500+-200K |
Colour rendering index(Ra) | 96/96 |
Illuminance depth(mm) | 1150/1150 |
Total irradiance (W/m2) | 510 |
Size of light field (mm) | 200-350 |
Rated power of bulb(V/W) | 3.2V/1W |
Illuminant Life | >50000 |
Power supply voltage | AC110V-240V(50HZ-60HZ) |
Total power consumption(W) | 70 |
Total LED bulb quantity(pcs) | 368 |
Lowest height of installation(mm) | 2900mm |
Warranty | 2 years |
Delivery time | 5 working days after payment |
FAQ
Q1. Can I have a sample order for LED Surgical Lamp?A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Q2. What about the lead time?A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than |
